Desk-top PCB separator

Basic specifications

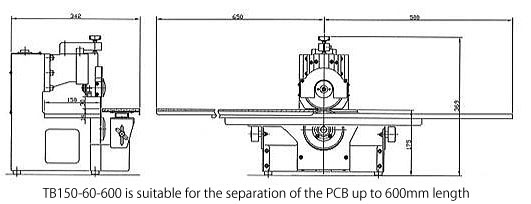

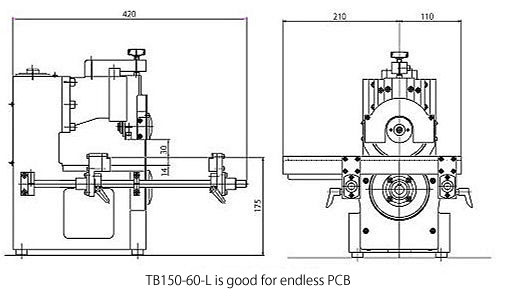

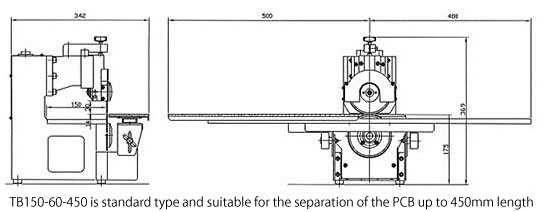

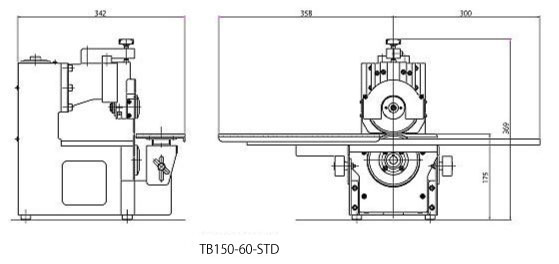

Model No. TB150-60-320 TB150-60-450 TB150-60-600 TB150-60-L
Maximum PCB length up to 320mm up to 450mm up to 600mm endless
PCB width from 5mm 〜 up to 150mm from 10mm 〜 up to 138mm
Form of the PCB V-groove Angle of the PCB V-groove needs more than 30 degrees
Thickness between the PCB V-groove bottom from 0.4mm at the standard to up to 0.8mm
Minimum PCB thickness std spec : more than 1mm
special order : less than 1mm : we offer a thin blade model
(In addition, in this case it becomes the shirring separation)

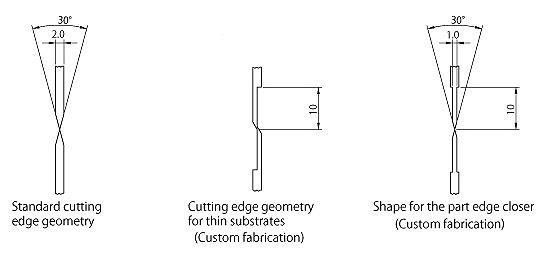

Dimensions of the separation blade Diameter is 106mm, and the thickness is 2mm
Angle of the points of a blade is 30 degrees
(Shape is a double-edged blade)
Maximum height of the surface-mounted parts Upper surface side is up to 30 mm and the lower surface side is up to 14 mm
Materials of PCB construction This device is suitable for Glass-Epoxy PCB and Composite PCB
Separation speed std spec : The separation speed is fixed . 166mm/sec at50Hz 199mm/sec at60Hz
special order : The separation speed is variable . from 10 〜 166mm/sec at 50Hz from 10 〜 199mm/sec at 60Hz
Motor specification 60W induction motor
Power source Single-phase AC100V 50Hz/60HZ
Weight aprx 16kg

grave
Feature

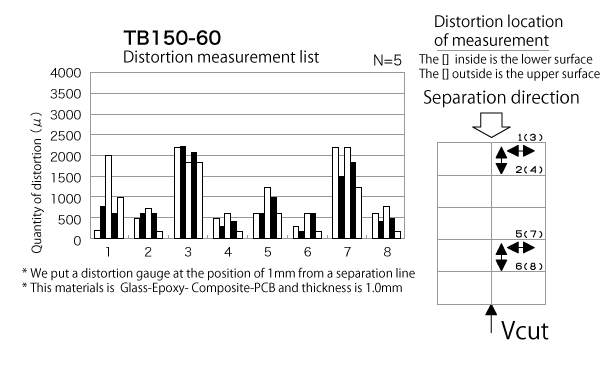

  1. High-stiffness-structure cause very small separation-stress
  2. Work efficiency is very high because this device has slide-table
  3. This device is suitable to divide both-sides-V-groove PCB
  4. A safe cover surround a blade
  5. We have several kinds of devices to the PCB length
  6. The TB150-60-L model is suitable for long PCB [more than 1,200mm]
Options
  1. We can offer the special shaped separation blade
  2. Blade grounding is also done
  3. We can offer a separation speed changeable motor




Please see the larger picture video

【VDO】

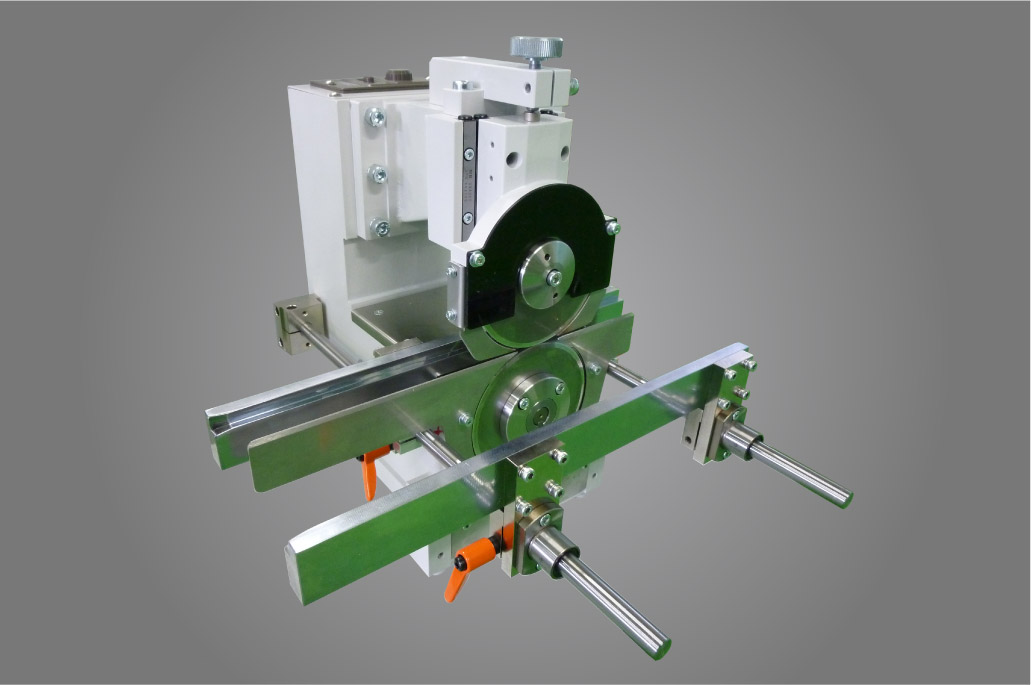

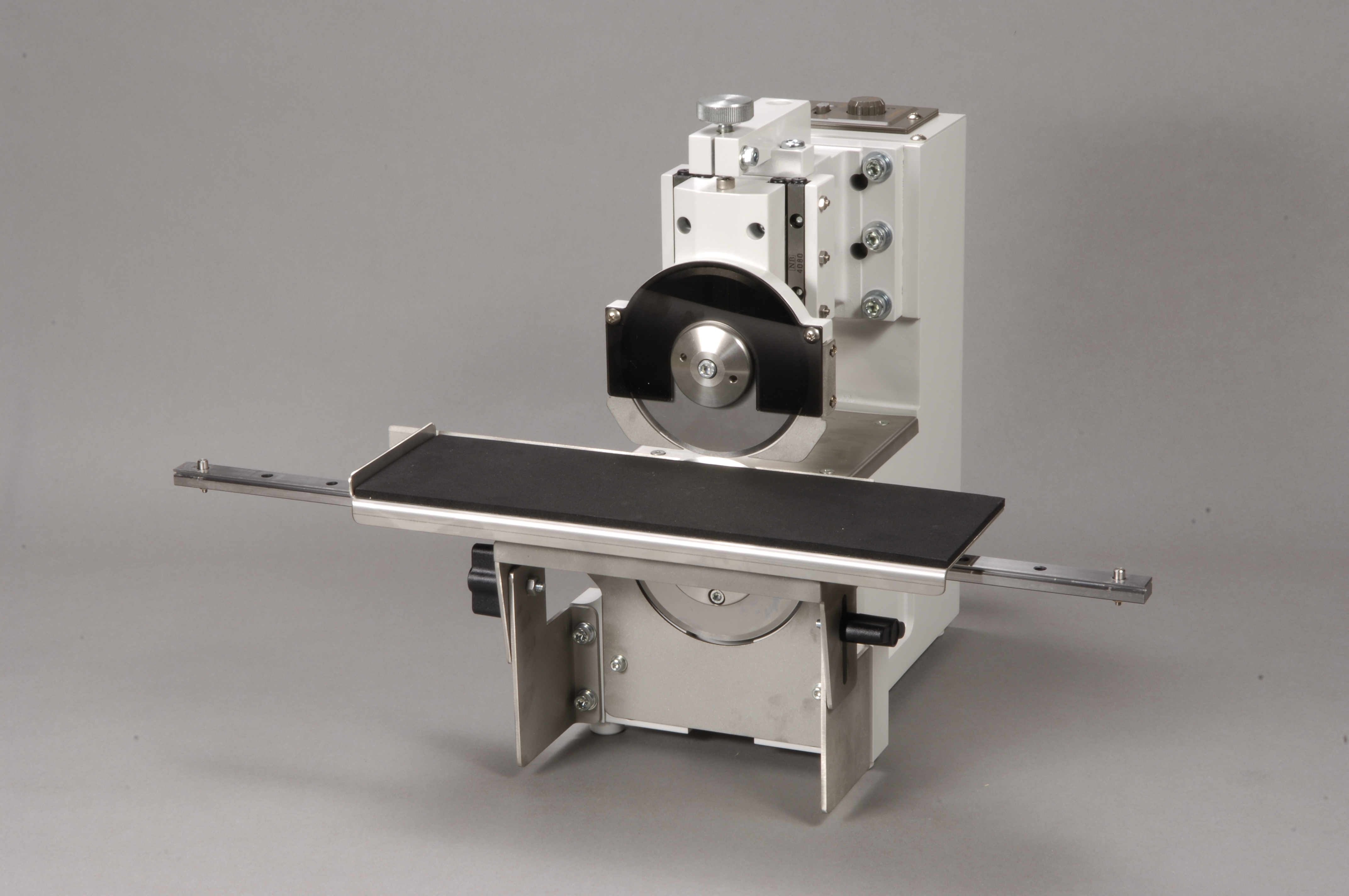

Rotary-type desk-top style PCB seperator TB150-60



Please see the larger picture video

【VDO】
Rotary-type desk-top style PCB seperator TB150-60-L

Rotary-type desk-top style PCB seperatorRotary-type desk-top style PCB seperator

※Click to enlarge the picture

TB150-60l-c

Click on the drawing if you want to print ou



TB150-60l-d

Click on the drawing if you want to print ou



TB150-60l-e

Click on the drawing if you want to print ou



TB150-60l-f

Click on the drawing if you want to print ou

TB150-60
