Press Type PCB separator

Model T-3.0 T-5.0 T-10.0
PCB Size Maximum 250x330mm Maximum 300x400mm
Parts Height Max20mm Upper Surface Max50mm,Lower Surface 20mm
Press Output 3Ton 5Ton 10Ton
Maximum Output 4.2Ton 7Ton 12Ton
Output Factor Air-Hydro booster
Open Height 70mm 150mm 150mm
Up-Down Stroke 40mm 100mm 100mm
1 Shot Length 6.5second 7-8second 8.5-10second
Control PLC Control
Operation Method Press Button by both hands
Safety Equipment Transmission sensor
Utility Power Supply AC100V,Air 5kg/cm2
Device Weight Abt360kg Abt380kg Abt5000kg

Press Type separator

Press Type separator T-3.0
* Click to enlarge the picture


Feature
  1. High speed separator
  2. With V Ditch or without V Ditch,the division is possible,however, the curve segment is not possible for division
  3. The seprt die can be easily exchanged
  4. High accuracy repeability by strong body
  5. Compact body with higu compietion
  6. The maximum output is large to the rated power
  7. Builtin standard safty sensor
  8. Glass epoxy, composite, and paper phenol is available
  9. Division blade material : SKH51
  10. By our experience we can produce a long-lived division type
  11. When the division type is worn out, the grind will be repeated again
  12. When the board splits multi-cavity, take considerable time out of the substrate by using a discharge tray Can significantly reduce the time and out of the substrate.
    Option and one set of two



Please see the larger picture video

[VDO]the Flex substrate separator

Other : Type T-3-O are produced for the Flex substrate

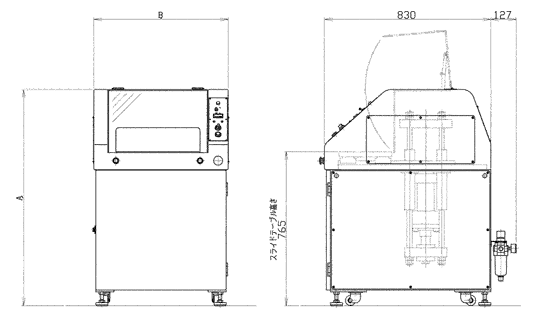

T-3_O-03
Click on the drawing if you want to print out

Model
Output
A
B
　T-3.0
3Ton
1020
670
　T-5.0
5Ton
1020
670
　T-10.0
10Ton
1070
740


オプション

Splitting type, discharge tray, secure area sensor

Press Type separator

Caution
Due to the blade angle of division is 30 degree,so V flute angle degree of the substrate basically targets is 30 degrees or more.

  • If successive division of V groove position
    Dimensions [mm] total length divided x9 · 5 [kg] x 1.2 = Safety factor [kg] divided power
  • If the split roulette
    Dimensions [mm] total length divided x5 · 6 x safety factor of 1.2 [kg] [kg] = force divided


    • Notes
    Split dimension calculation above is to split when the top and bottom so as to hold the blade edge angle of 30 degrees.
    But if the V-groove angle of 35 degrees or more.

  • If the division without the punch
    Dimensions [mm] total length divided x24 safety factor of 1.3 [kg] x = [kg] divided power


    • Notes
    How to divide by partially removing.
