PCB separator, substrate division machine, substrate cutting machine

動画拡大画像をご覧ください。

[VDO] Separator for test

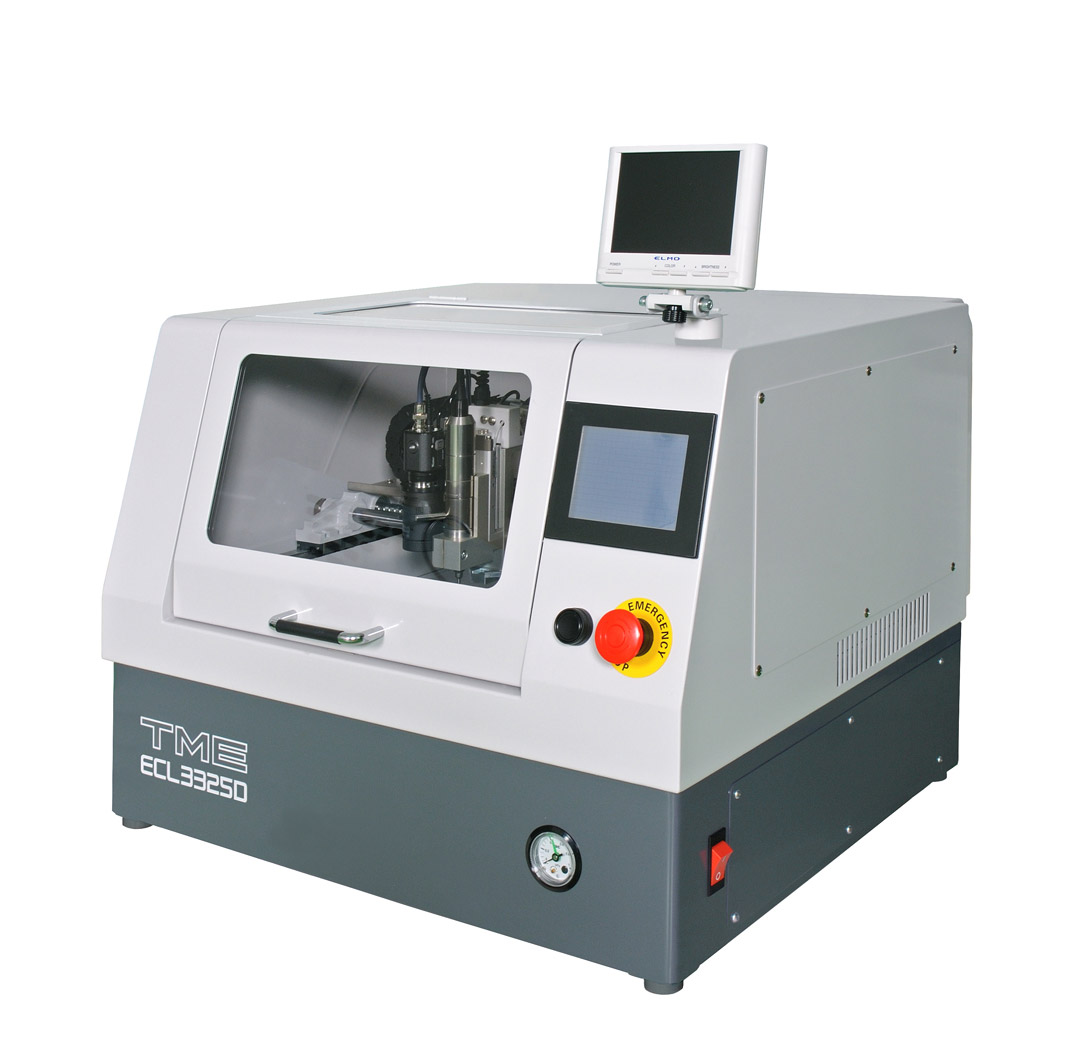

Model	Desk-top type router type separator (ECL33250)
PCB Size	250x330mm
Mounting Part Height	Upper 13mm, Lower 25mm
PCB Thickness	0.4-1.6mm
Mounting Accuracy	±0.1mm (The accuracy for repeated stoppage±0.015mm)
Speed	Maximum 750mm/s
Spindle Specification	DC Spindle Motor、Rotary time　Maximum 40,000r/m, Collet chuck diameter 3.175mm, Only 1 touch to change the tool
X・Y Axis Driving	X Axis・Y Axis100W ServomotorDriving、Ball Screw Lead 15mm
Ｚ Axis Driinge	Air Cylinder　Driving（We have protect in case of power failure or air power supply down）
Number of Data Memory	60 Data(Can devide Maximum120 per 1 Data)
Data Setting	Directly setting by CCD Camera・Setting CAD Data for Option
Control	CPU Control
Utlity	Power Supply 100V, Air 5kg/cm2
Machine Weight	About 68 kg
Special Specification	2 Steps Cut-position change function Tool cutting life can set by touch panel Tool's cut position is changeed by automatic and this makes tool life twice Cut-Jig colleation function Data number is automatically set by Cut--ig installed Dog-Bit Spindle-motor overload detection Watching a load electric current make emaergency stops.
Option	・Cut-jig ・Footstool ・Commercial dust collector (0.4kw, 0.75kw、1.5kw） ・CAD-data convertor ・Automatic Cover-closer ・Work sitting sensor ・Signal tower ・Broken-tool sensor ・Discharge tray ・The correspondence to special specifications of the cutmer

Feature

1. 1.5times fast-forwading speed makes high efecency with durable body

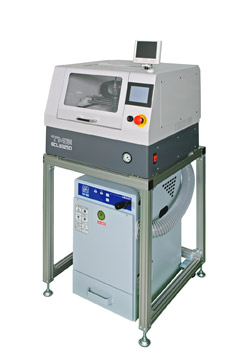

2. 1.5kw dust collector make good effect for large height device
3. When the board splits multi-cavity, take considerable time out of the substrate by using a discharge tray
　 Can significantly reduce the time and out of the substrate.
　 Option and one set of two
4. Cut-Jig colleation function can automaticaly change data of cutting
5. Spindle-motor overload detection can protect tool brake
6. The price is cheaper comparing with other machines of us
7. Small Size in Desktop Type Machine

　　　　　　
