In-Line Type PCB separator

Model Specification In-line router division device
Substrate Size INL2025S Max200x250mm
INL3325S Max250x330mm
Substrate Thickness 0.4-1.6mm
Speed Max 700mm/s
Mounting Parts Height Upper Max 13mm,Lower Max25mm
Division Accuracy ±0.15mm((The repetition accuracy as the device is ±0.02mm.)
X・Y Axis Operation X Axis=Servo Motor 100W,Y Axis=Servo Motor 100W
Ball Screw Lead 15mm
Z Axis Operation Air Cylinder Operation,Up-Down Stroke 25mm
Spindle Motor DC Spindle Motor 90 W,Max Rotated Number 40,000 r/m
Colette zipper diameter 3.175mm
Z Axis Exchanged Method Exchanged 2mm from Air Cylinder Operation Mechanism (Exchanged from divided distance setting)
Supplementary Direct Line Supplementary
Control Method PLC Control
Number of Data Memory Max 30 Data x 60 divided places
Data Input Method Direct Setting
Number of Table Turning Time&Division -
Loader Maximum Stroke INL2025S
  INL3325S
Loader Up&Down Stroke 30mm
Loader 1Cycle Time 12second
Utility Power Supply AC200V,Air 5kg/cm2

Feature

1. It is a multi-purpose In-Line type,simple and durable structure with correspondence to a long time operation
　 which can apply to all of division devices industry
2. As the structure, this device is composed with the acceptance conveyer of upstream, the transportation
　 mechanism, and exhausting the flat conveyer optional from the division mechanism and the upstream, and the
　 transportation hand is assumed to be the one to produce the division jig in addition according to the division
　 substrate
3. The positional precision when piece is discharged after dividing will not go out

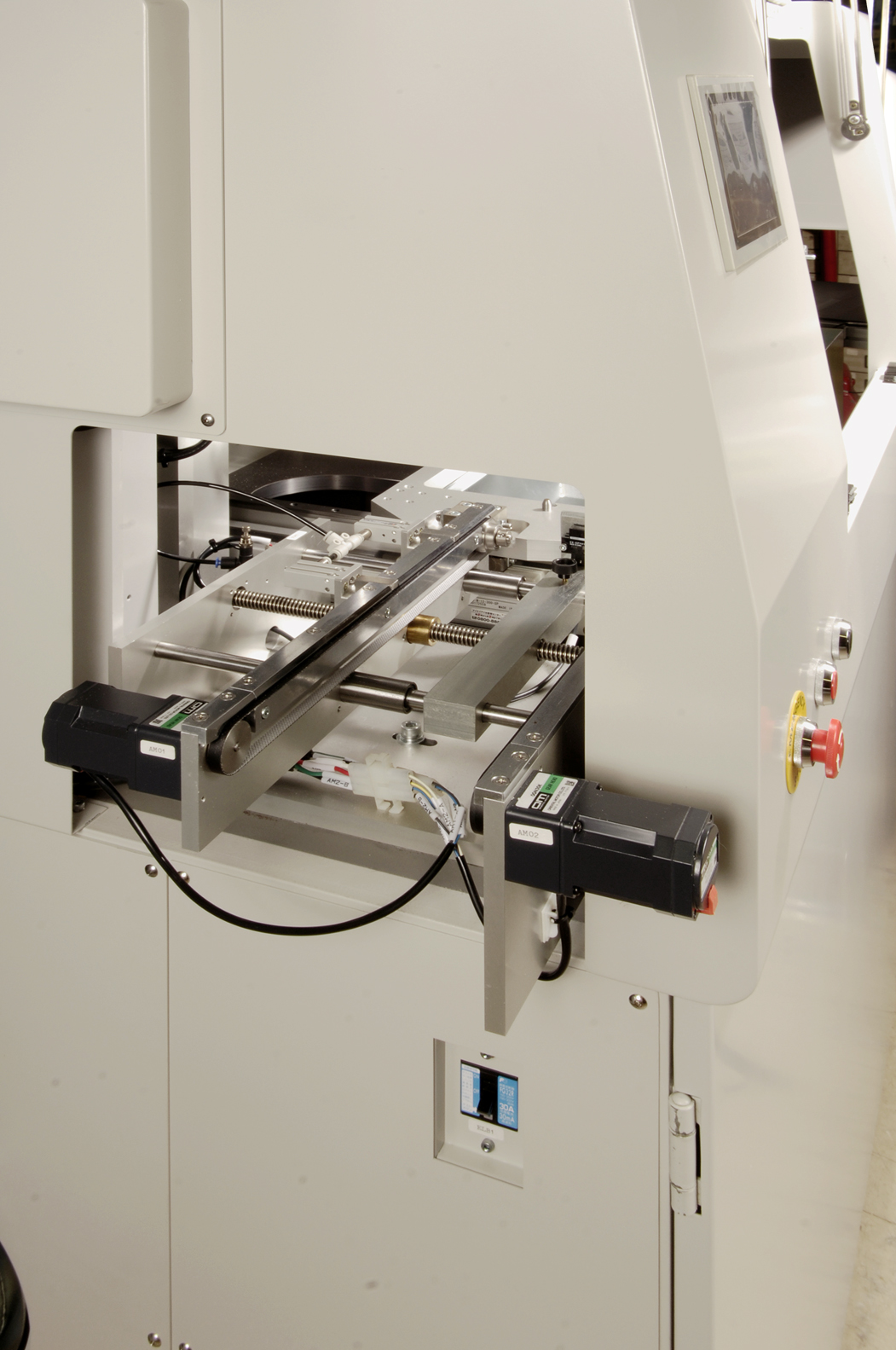

In-Line Type separator　In-Line Type separator　In-Line Type separator　

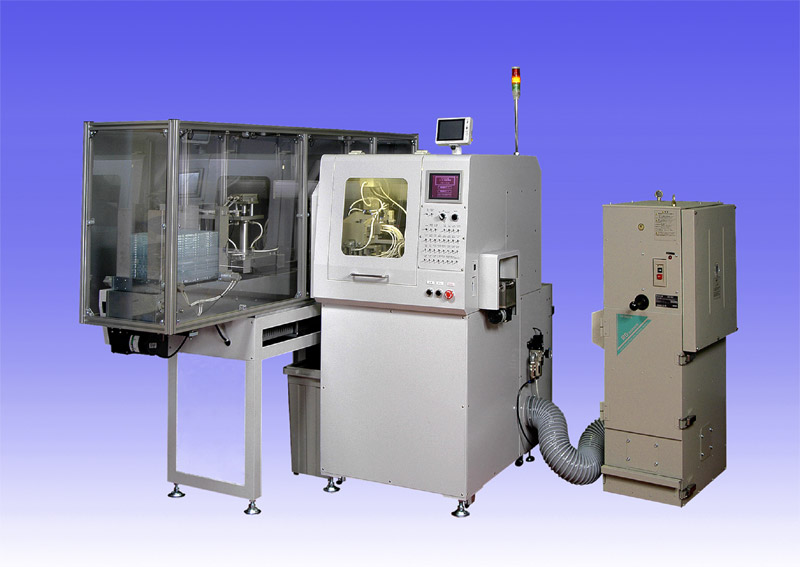

INL3325S type
* Click to enlarge the picture



In-Line Type separator　In-Line Type separator

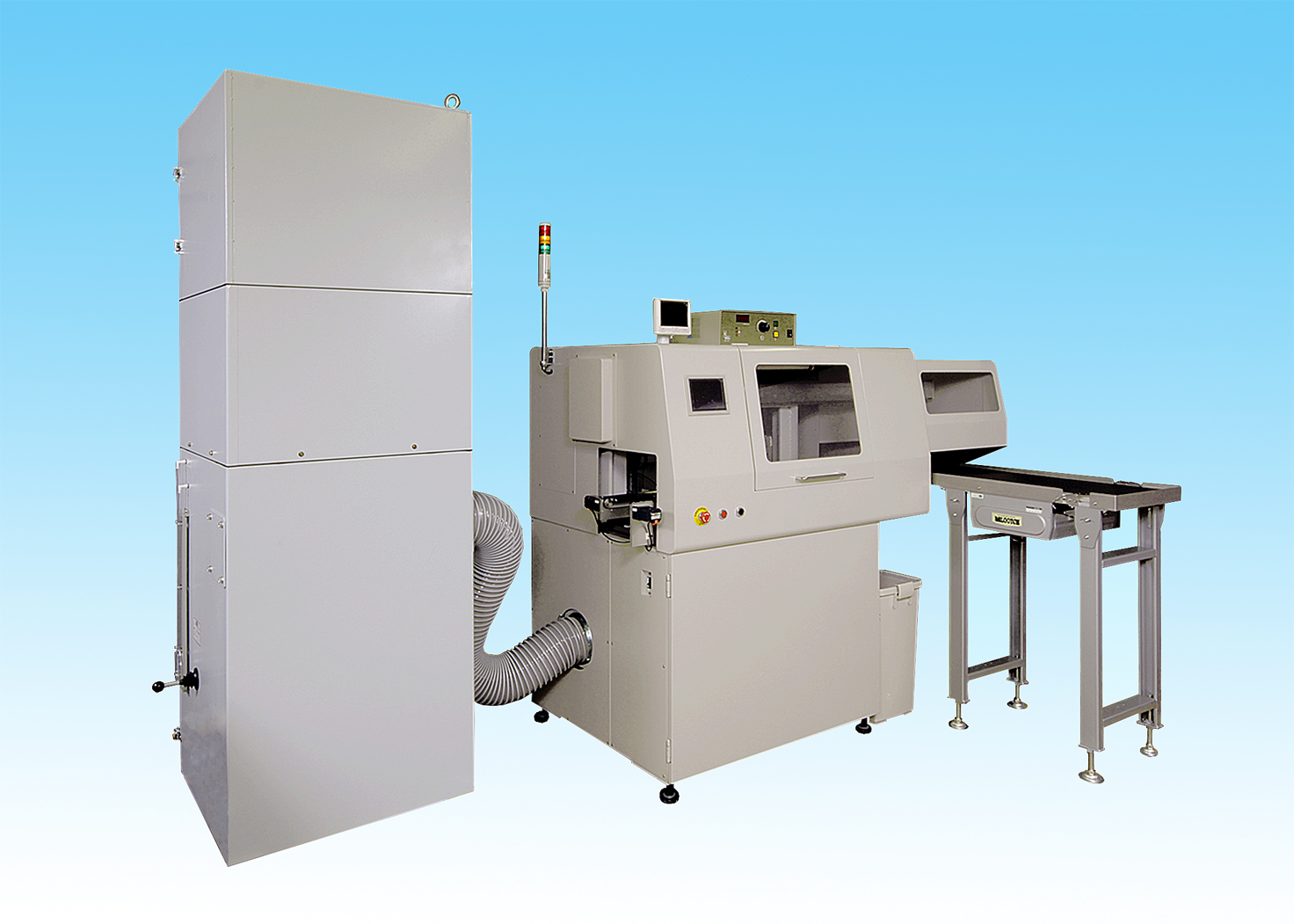

INL2025T
* Click to enlarge the picture
Feature

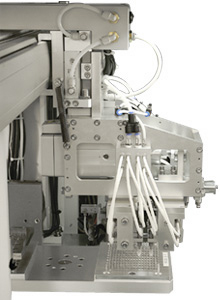

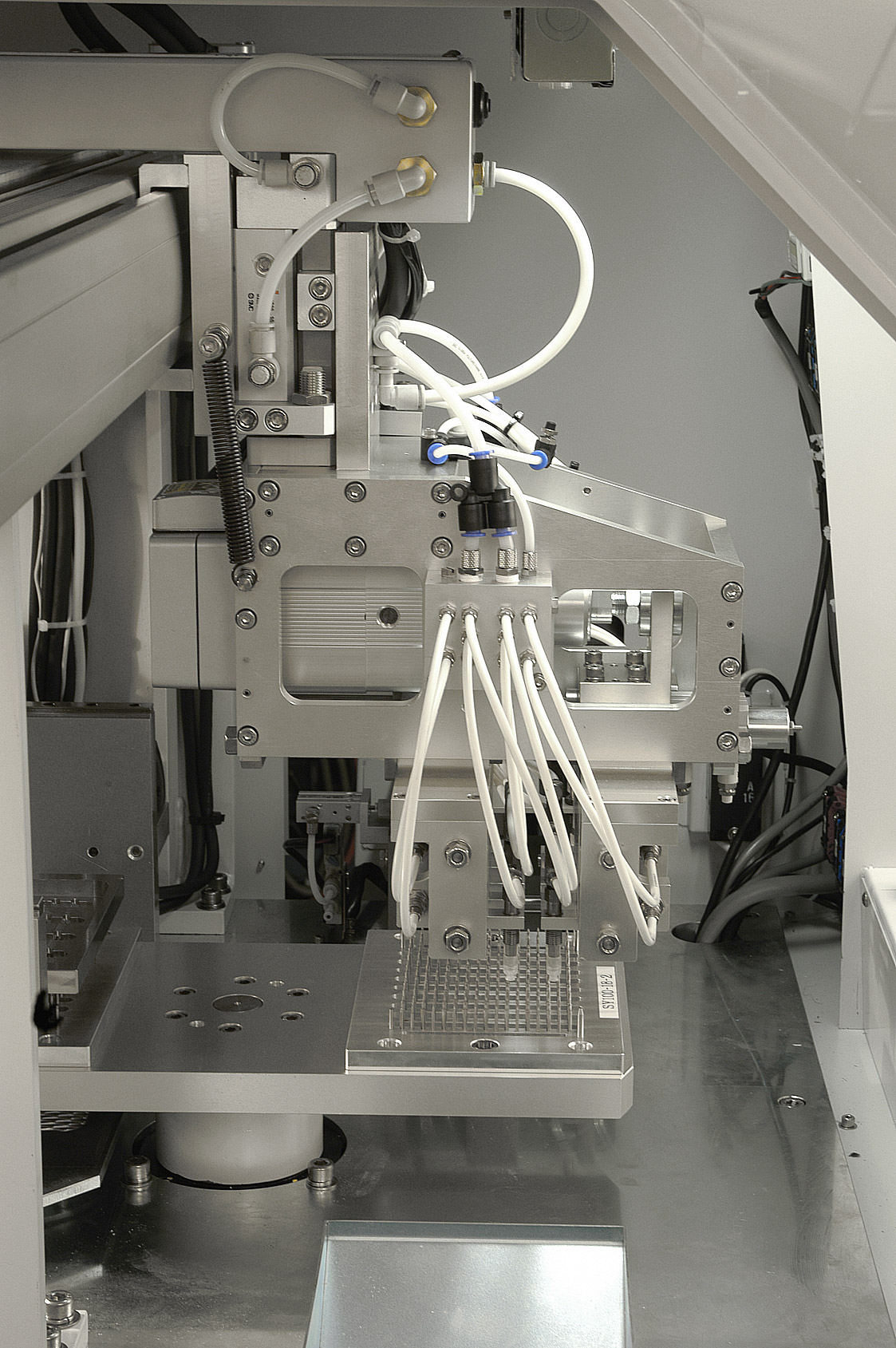

  1. Ten divided pieces a simultaneous example of the hand for the discharge is a vacuum zipper on the jig, a pitch that about is carrying out and is right and left is changed, and it unloads on the tray by precise positioning The discharged operation of one seat will complete the repetition of this transportation four times



Please see the larger picture video

[VDO] : Table Rotated Type In-Line Router Division Device INL2025S

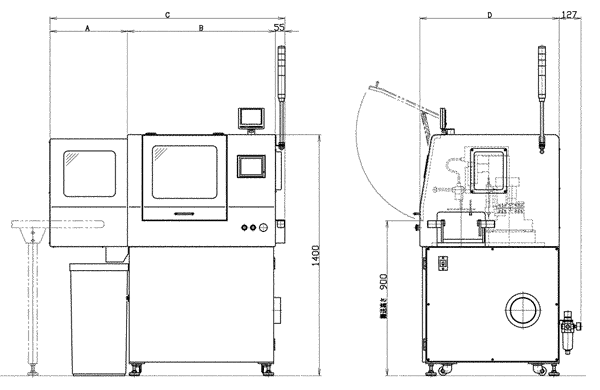

INL2025S
Click on the drawing if you want to print out


Model
A
B
C
D
　INL2025S
450
860
1365
810
　INL3325S
500
950
1505
830
　INL2025S-2SP
450
1020
1525
810
　INL3325S-2SP
500
1110
1665
830




Model 2 Spindles Type In-Line Router Division Device　* ＰＡＴ５３０５７３３
Substrate Size INL2025S-2SP Max 200x250mm
INL3325S-2SP Max 250x330mm
Sunstrate Thickness 0.4-1.6mm
Speed Max 700mm/s
Mounting Part Height Upper Max 13mm, Lower 25mm
Division Accuracy ±0.15mm((The repetition accuracy as the device is ±0.01mm.)
X・Y Axis Driving ＸX Axis=Servo Motor 100W,Y Axis=Servo Motor 200W
Ball Screw Lead 15mm
Z Axis Driving Air Cylinder Driving Up-Down Stroke 25mm
Spindle Motor DC Spindle Motor 90W,Max Rotated Number 40,000r/m
Colette Zipper Dimension 3.175mm
Z Axis Exchanged Method Exchanged 2mm from Air Cylinder Driving Mechanism (Exchanged up to usage elapse time)
Spindle interval range of adjustment 41-100mm
Supplementary Direct line supplementary
Control Method PLC Control
Number of Data memory Max 30 Data x 60 Divided Places
Data Input Method Directly Setting
Table Rotated Time・Divided Number -
Loader Maximum Stroke INL2025S-2SP
  INL3325S-2SP
Loader Up-Down Stroke 30mm
Loader 1 Cycle Time 12 second
Utility Power Supply AC200V,Air 5 kg/cm2

Feature

  1. Two spindles mechanism is divided into 1 sheet substrate which composing by 2 spindles in multi-purpose In-Line structure that make it is possible to shorten the division time and improving division time more rapidly The pitch between two spindles is a variable structure, the spindle in one side can set driving and the stoppage of each division part and use as one spindle division device,becomes possible according to the kind of the substrate too
  2. The device is suitable for mass production of a small substrate


    3. Model Table Rotated Type In-Line Router Division Device　* ＰＡＴ５３０５７３３
    Substrate Size INL2025T-2SP Max200x250mm
    INL3325T-2SP Max250x330mm
    Substrate Thickness 0.4-1.6mm
    Speed Max700mm/s
    Mounting Part Height Upper Max13mm,Lower Max 25mm
    Division Accuracy ±0.15mm(The repetition accuracy as the device is ±0.01mm.)
    X・Y Axis Driving X Axis=Servo Motor100W,Y Axis=Servo Motor 200W
    Ball Screw Lead 15mm
    Z Axis Driving Air Cylinder Driving Up-Down Stroke 25mm
    Spindle Motor DC Spindle Motor 90 W Max Rotation Number 40,000r/m
    Colette Zipper Dimension 3.175mm
    Z Axis Exchanged Method Exchanged 2mm from Air Cylinder Driving Mechanism (Exchanged up to usage elapse time)
    Spindle interval range of adjustment 41-100mm
    Supplementary Direct Line Supplementary
    Control Method PLC Control
    Number of Data Memory Max 30 Datax60 Divided places
    Data Input Mothod Directly Setting
    Table Rotated Time/Divided Numer Rotated Time 2 second・2division
    Loader Maximum Stroke INL2025T-2SP
      INL3325T-2SP
    Loader Up-Down Stroke 30mm
    Loader 1 Cycle Timing 12 second
    Utility Power Supply AC200V,Air 5kg/cm2





    Please see the larger picture video

    [VDO]
    Table Rotated Type In-Line Router Division Device

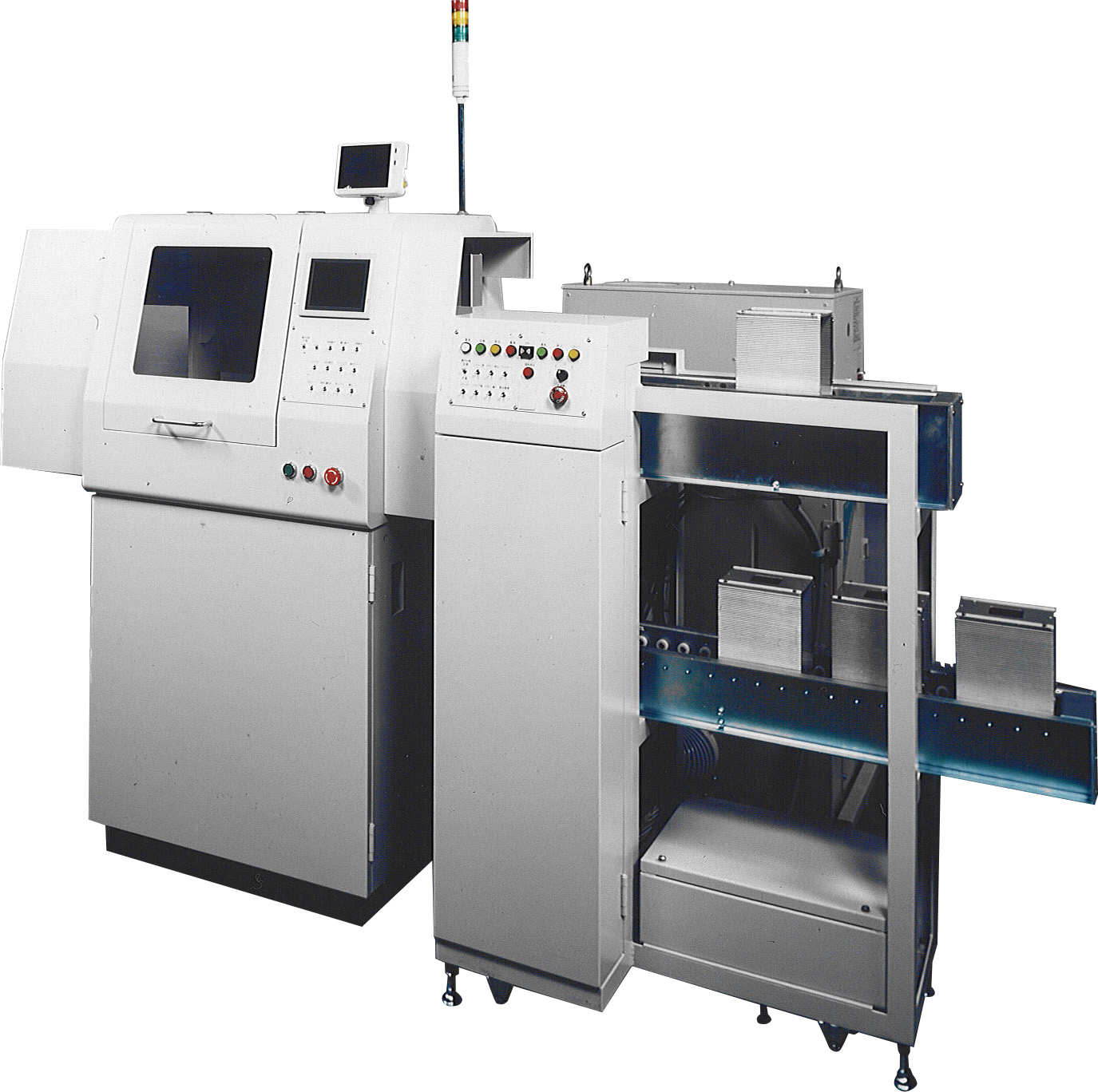

    INL2025T-2SP
    		 Feature
    1. This device is a multi-purpose table rotated type,in-line structure to shorten time for substrate putting in and out When the rotated table was assumed two index structure and divided in one side, the substrate had already been put in and out in one side. Due to the time of putting in and out of the substrate is short comparing with the division time, the time of putting in and out of the substrate becomes 0 hours
    2. If two spindle mechanism is built into the rotated table type, the division speed will becomes the most fastest of the industry
    3. Suitable for the mass production of a small substrate
    4. The division jig is need two sets for one substrate

    In-Line Type separator

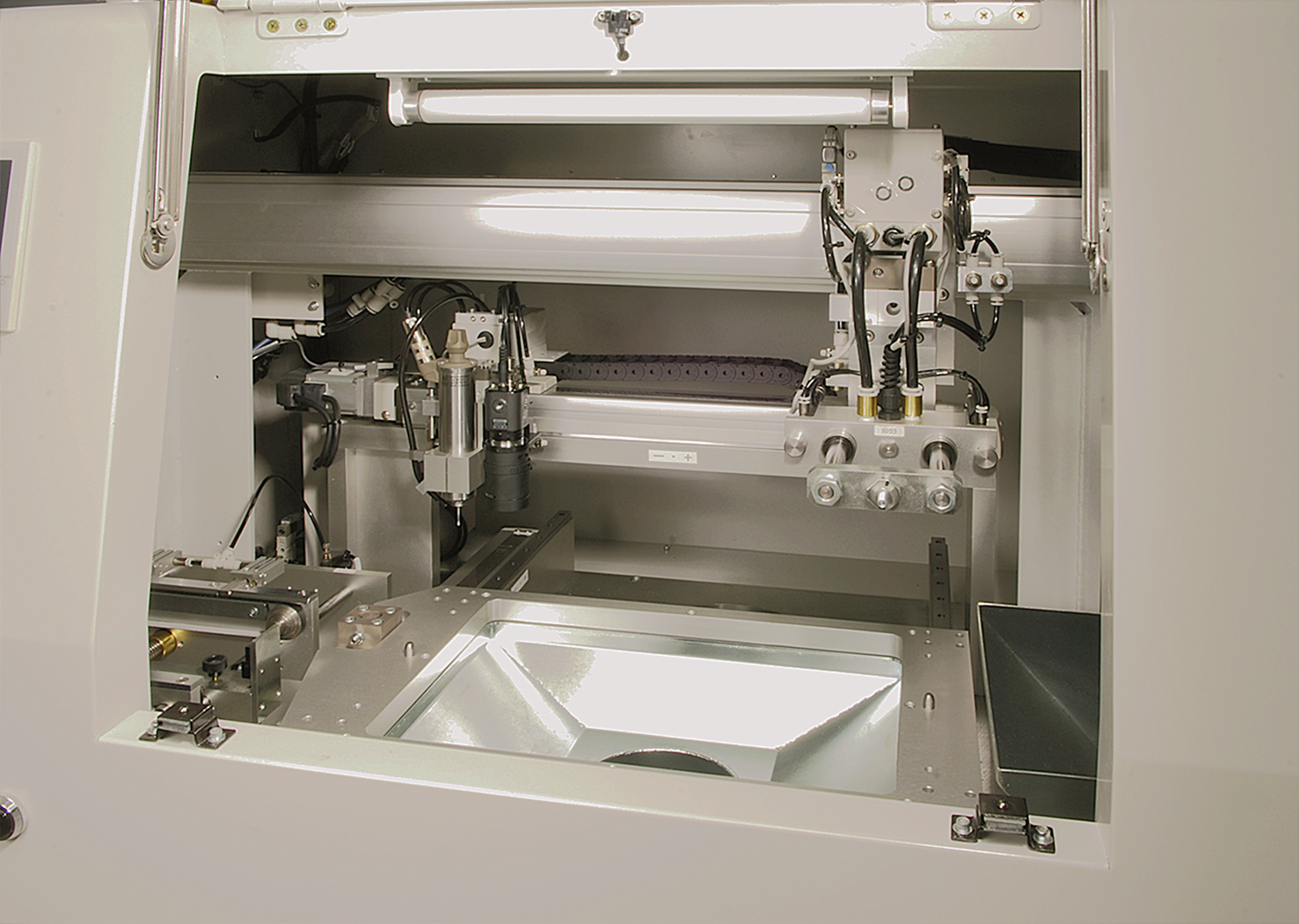

    INL2025S type
    * Click on the picture to enlarge
    INL2025S

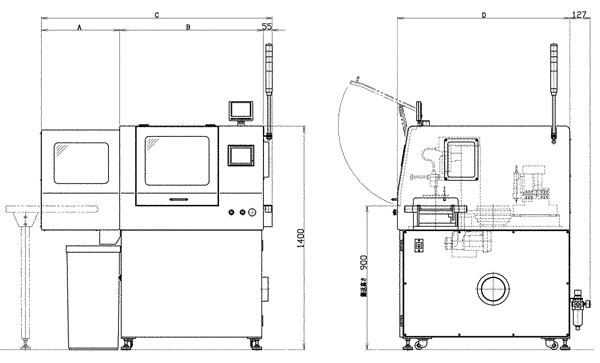

    Model
    A
    B
    C
    D
    　INL2025T-2SP
    490
    900
    1445
    1080
    　INL3325T-2SP
    530
    980
    1565
    1200
